Model
|
TS3015
|
|||
|

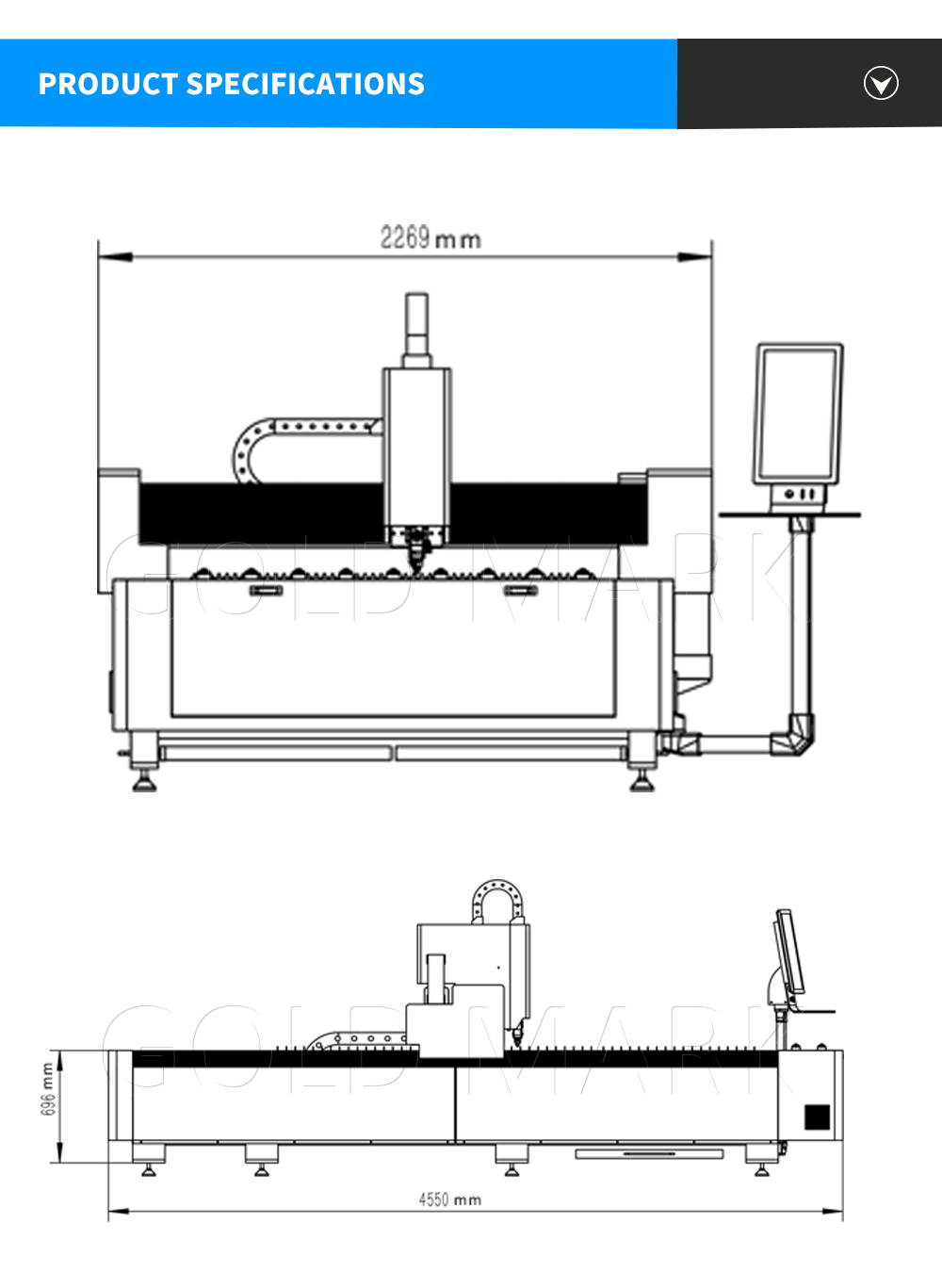

Dimension
|
4600*2450*1700mm
|
|||
|
Laser power
|
1KW
|
|||
|
Working area for metal sheet
|
3060*1530mm
|
|||
|
Y-axis stroke
|
3000mm
|
|||
|
X-axis stroke
|
1500mm
|
|||
|
Z-axis stroke
|
120mm
|
|||
|

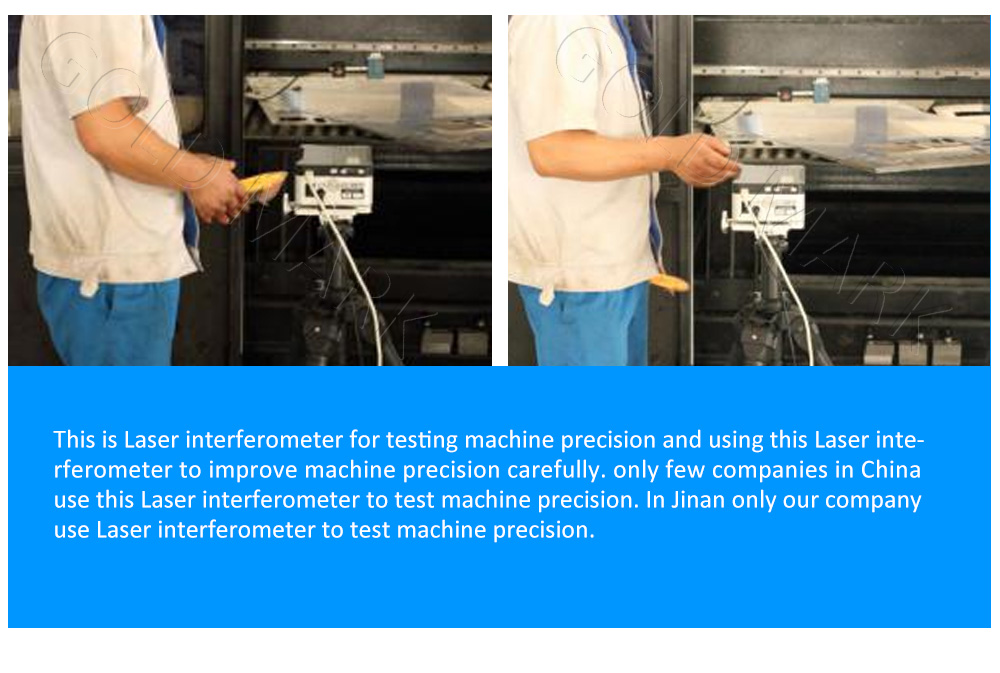

X/Y axis position accuracy
|
±0.03mm
|
|||
|
X/Y axis reposition accuracy
|
±0.02mm
|
|||
|
Max running speed
|
90m/min
|
|||
|
Maximum acceleration
|
1.0G
|
|||
|
Specified voltage and frequency
|
380V/50Hz/60Hz/60A
|
|||
|
Continuous working time
|
24h
|
|||
|
The Best Working Temperature
|
10-35℃
|
|||

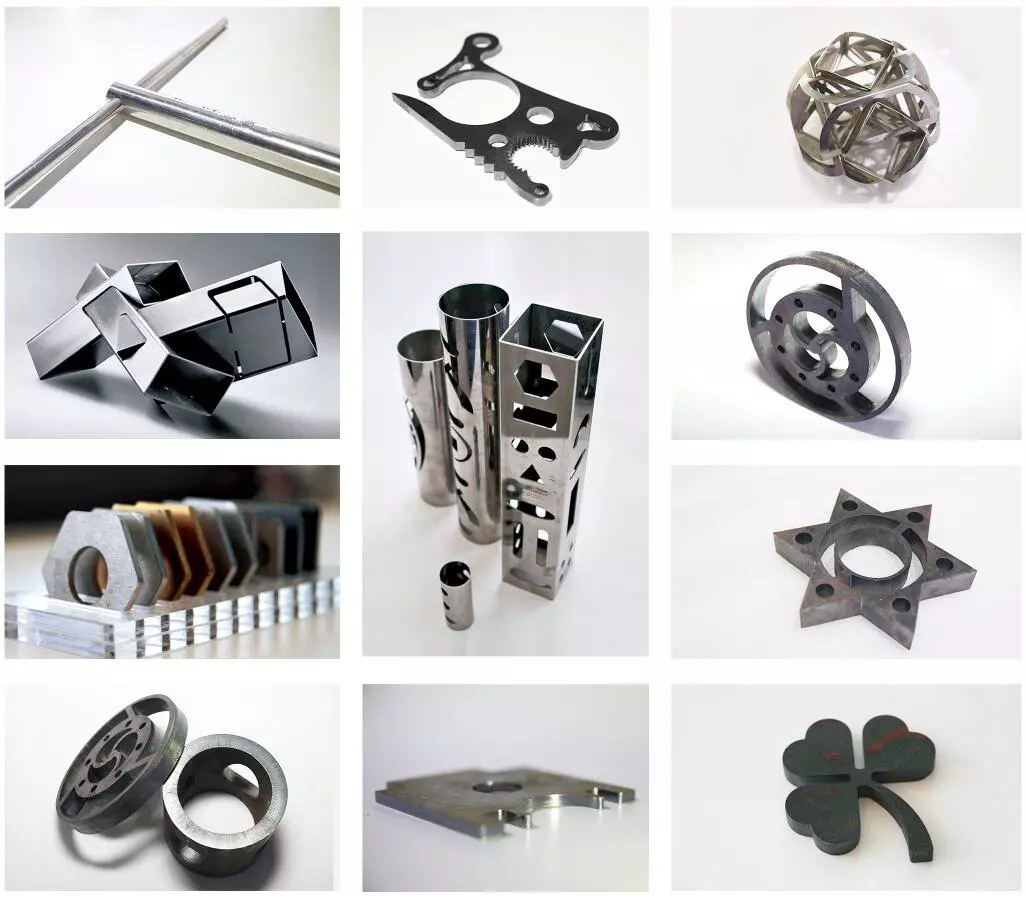

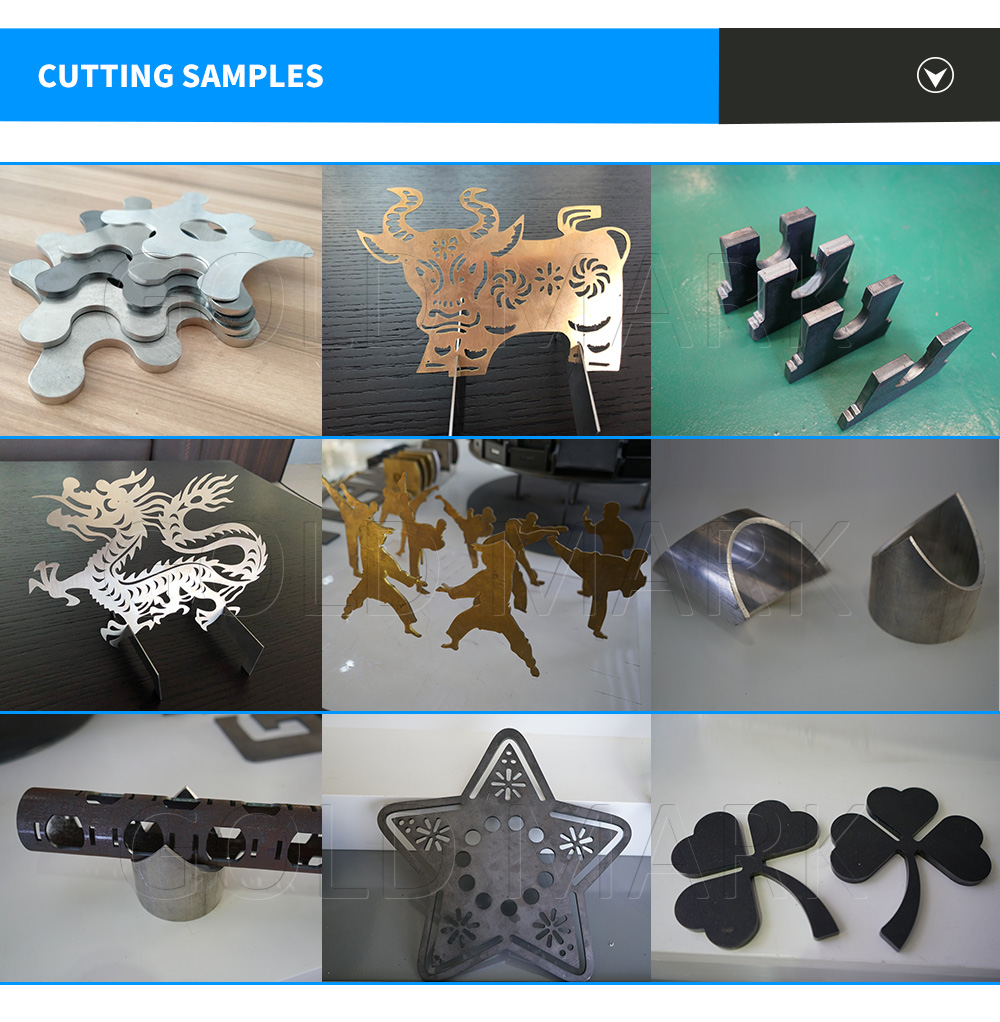

Applicable materials
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
