GM12020F Flat Fiber Laser Cutting Machine


  • Model Number: GM12020F(3015/4015/4020/6015/6020/6025)
  • Working Area: 12000*2000mm
  • Laser Power: 1.5KW/2KW/3KW/6KW/10KW/12KW/20KW/30KW
  • Brand: GOLD MARK
  • Laser Source: MAX/Raycus/Reci/BWT/JPT
  • Cutting Head: RayTools
  • Customizable: Yes
  • Laser Wave Length: 1064nm
  • Cooling System: S&A water chiller
  • Working life of fiber module: More than 100000 hours
  • Auxiliary Gas: oxygen,nitrogen,air
  • Working Voltage: 380V

Detail

Tags

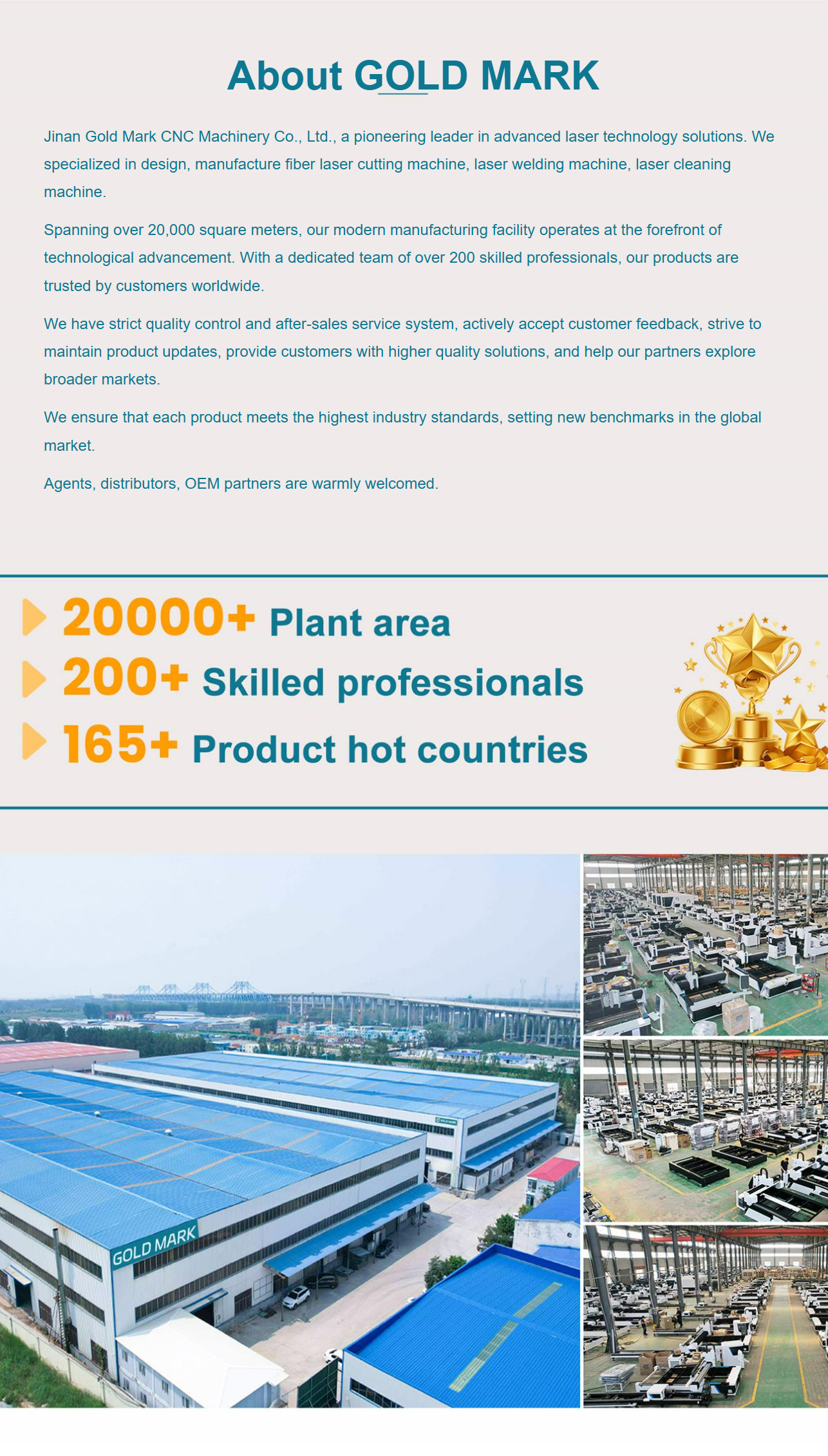

1731394894998

Quality service

Quality service

Long warranty period to ensure that customers peace of mind, we promise customers to enjoy the Gold Mark team after the order to enjoy the long after-sales service.

Machine quality Inspection

More than 48 hours of machine testing before each equipment is shipped, and the long warranty period ensures customers' peace of mind

Customized solution

Accurately analyze customer needs and match the most suitable laser solutions for customers.

Online exhibition hall visit

Support online visit, dedicated laser consultant to take you to visit the laser exhibition hall and production workshop, according to the needs of the test machine processing effect.

Free cutting sample

Support proofing test machine processing effect, free testing according to customer material and processing needs.

GM-12020F

Fiber Laser Cutting Machine

Bulk purchases to obtain greater support from suppliers,
lower purchase costs for the same product, and better after-sales policies

The entire machine body is a high-quality sheet metal welding bed with better load-bearing capacity and more stability to ensure cutting accuracy, no deformation, and longer service life. It also has an excellent smoke removal module, which adopts a partitioned smoke removal method. According to the actual cutting position during cutting, the corresponding partition damper is opened, and smoke is extracted from the bottom of the machine through a smoke machine to achieve an excellent smoke removal effect.

Mechanical Configuration

Auto Focus Laser Cutting Head

Suitable for a variety of focal lengths, the focus position can be adjustedaccording to different thicknesses.  Flexible and fast, no collision,automatic edge finding, reducing sheet waste.

Aviation Aluminum Alloy Beam

The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

SQUARE RAIL

Brand :Taiwan HIWIN Advantage:Low noise,wear-resistant,smooth to keep fast Moving speed of laser head Details:30mm width and 165 four pieces stock on every table to decrease the pressure of rail

Control system

Brand :CYPCUT Details:edge seeking function and flying cutting function ,intelligent typesetting ect,supported Format:AI,BMP,DST,DWG,DXF,DXP,LAS,PLT,NC,GBX etc...



Automatic lubrication system

Equipped with automatic lubrication system to reduce machine failures, reduce maintenance costs, improve lubrication utilization, optimize lubrication steps, and improve operational safety.

Safety light curtain

Equipped with safety grating, it has high stability and reliability, can work in harsh environments, and can withstand the influence of external factors such as high temperature, low temperature, vibration, etc. It has high detection sensitivity and can quickly and accurately detect obstacles in the processing area to ensure the safe operation of the machine tool.

Remote wireless control handle

Wireless handheld operation is more convenient and sensitive, improves production efficiency, and is perfectly compatible with the system.

Chiller

Equipped with a professional industrial fiber optic chiller, it cools the laser and laser head at the same time. The temperature controller supports two temperature control modes, which effectively avoids the generation of condensed water and has a better cooling effect.

Technical Parameters

Machine Model GM12020F GM3015F GM4020F GM6020F GM6025F
Working Area 12050*2030mm 3050*1530mm 4050*2030mm 6050*2030mm 6050*2530mm
Laser Power 1500W-30000W
Accuracy Of
Positioning
±0.05mm
Repeat
Repositioning
Accuracy
±0.03mm
Max Movement Speed 120m/min
Servo Motor
and Driver System
1.2G
说明书+质检(12020)

Sample display

Applicable materials: Mainly used for fiber laser metal cutting, suitable for cutting plates of stainless steel, low carbon steel, carbon steel, alloy steel, spring steel, iron, galvanized iron, aluminum, copper, brass, bronze, titanium, etc.

Quality inspection and delivery

Industrial machinery and equipment play an important role in modern industrial production. Their performance and quality are directly related to production efficiency and product quality. For this reason, GOLD MARK conducts professional quality inspection of machinery and equipment before long distance transport or delivery to the user, the correct packaging and transportation to ensure the safety and integrity of machinery and equipment.

About Freight Transportation

The innovative and unique packaging method supports a maximum of 8 devices in one inside a shipping container, helping you reduce freight costs, tariffs and various expenses to the greatest extent.
