Lesa Siṣamisi Machine TS2020

Tabili oniru, wa pẹlu kan minisita worktable
to gaju-didara imọlẹ ina, ti o dara iranran didara, aṣọ opitika agbara iwuwo, idurosinsin o wu opitika agbara, ko si ina jijo, ga egboogi-otito.
Lilo ga-iyara Antivirus galvanometer, kekere iwọn, yara iyara, ti o dara iduroṣinṣin.
Wa pẹlu kọmputa kan imurasilẹ, rọrun lati fi sori kọmputa àpapọ


  • FOB Iye: FOB Iye US $ 0,5 - 99,999 / nkan
  • FOB Iye: Min.Order opoiye 1 nkan / ege
  • FOB Iye: Ipese Agbara 50 Nkan / Awọn nkan fun Oṣooṣu

apejuwe awọn

Awọn afi

Working principle

The laser beam from the laser (through the beam expander mirror) enters the marking head, and after the reflection of the scanning oscillator 1 and scanning oscillator 2 reaches the f-Theta flat field lens, through which the lens is focused to form a high energy spot (15-20μ) with a small area. The scanning oscillator is driven by a highly sensitive detector-type motor, and the computer control system controls these two motors to deflect at a certain angle, while controlling the laser beam off and on, finally marking the required symbols and patterns on the workpiece.
Awọn ẹya ọja

1.It can process a variety of metal and non-metal materials. Especially for high hardness, high melting point and brittle materials, the marking is more advantageous.

2.Non-contact processing, no damage to the product, no tool wear, and good marking quality.

3.The laser beam is fine, the processing material consumption is small, and the processing heat affected zone is small.

4.High processing efficiency, computer control, and easy automation.

Ọja sile

33123123

 Awoṣe KO.

TS2020

 Power

20W / 30W / 50W

lesa brand

Raycus (Maxphotonics / IPG Iyan)

 siṣamisi Area

110mm * 110mm

 Iyan Siṣamisi Area

 110mm * 110mm / 150mm * 150mm / 200mm * 200mm

 siṣamisi Ijinle

≤0.5mm

 siṣamisi Speed

≤7000mm / s

 Kere Line iwọn

0.012mm

 kere ohun kikọ silẹ

0.15mm

 tun konge

± 0.003mm

 Aye-igba ti Okun lesa Module

100 000hours

 tan ina Quality

M2 <1,5

 Idojukọ Aami opin

<0.01mm

 O wu Power of lesa

10% ~ 100% continuously lati wa ni titunse

 System Isẹ ayika

Windows XP / W7-32 / 64bits / W8-32 / 64bits

 itutu mode

Air itutu--Itumọ ti ni

 Otutu ti isẹ ti ayika

15 ℃ ~ 35 ℃

 Power Input

220V / 50HZ / nikan alakoso tabi 110V / 60Hz / nikan alakoso

 Power ibeere

<400W

 Communication Interface

USB

 package Dimension

940 * 790 * 1550mm

 Net iwuwo / gross àdánù

120KG / 170KG

 Iyan (Ko free ti idiyele)

Rotary Device, Gbigbe Table, miiran ti adani Automation

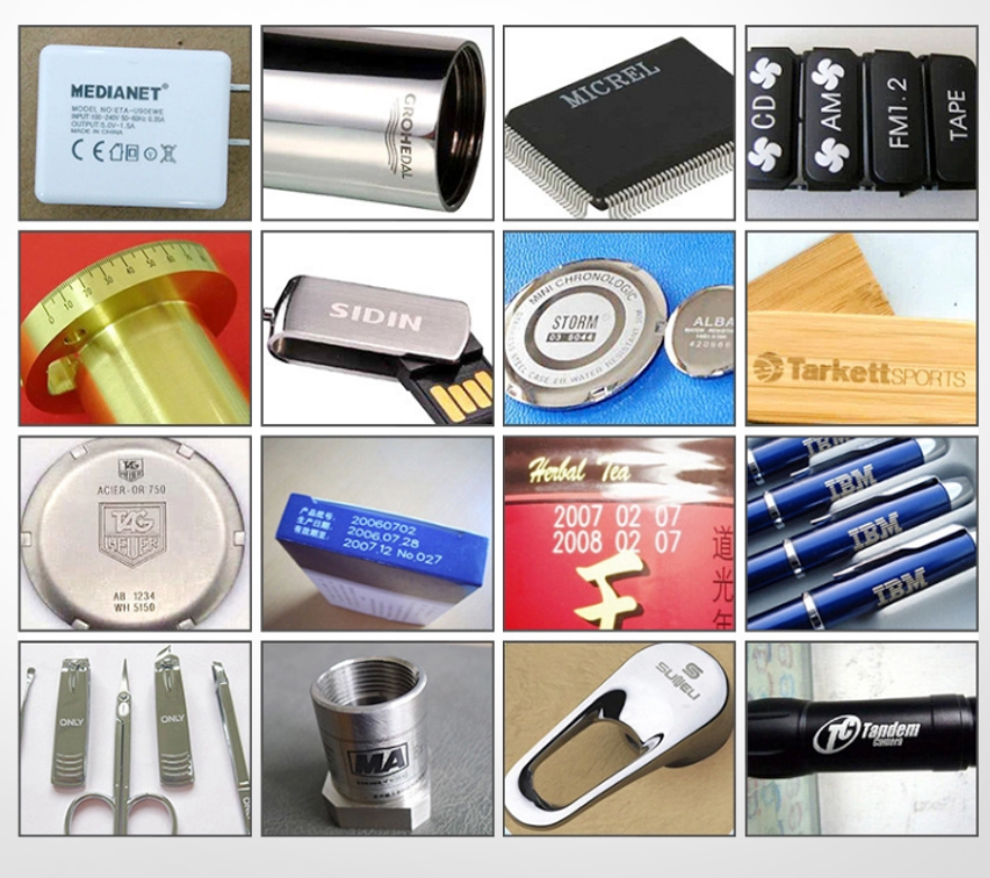

Sample Show

QQ截图20210406145837
