GM3015EPM Protect Enclosed Fiber Laser Cutting Machine


  • Model Number: GM3015EPM(4015/4020/6015/6020/6025)
  • Laser Power: 1KW/1.5KW/2KW/3KW/6KW/12KW/20KW/30KW
  • Laser Source: MAX/Raycus/Reci/BWT/JPT
  • Cutting Head: RayTools
  • Customizable: Yes
  • Brand: GOLD MARK
  • Shipping: By sea/By land
  • Laser Wave Length: 1064nm
  • Cooling System: S&A water chiller
  • Working life of fiber module: More than 100000 hours
  • Auxiliary Gas: oxygen,nitrogen,air
  • Working Voltage: 380V

Detail

Tags

About GOLD MARK

Jinan Gold Mark CNC Machinery Co., Ltd., a pioneering leader in advanced laser technology solutions. We specialized in design, manufacture fiber laser cutting machine, laser welding machine, laser cleaning machine.

Spanning over 20,000 square meters, our modern manufacturing facility operates at the forefront of technological advancement. With a dedicated team of over 200 skilled professionals, our products are trusted by customers worldwide.

We have strict quality control and after-sales service system, actively accept customer feedback, strive to maintain product updates, provide customers with higher quality solutions, and help our partners explore broader markets.

We ensure that each product meets the highest industry standards, setting new benchmarks in the global market.

Agents, distributors, OEM partners are warmly welcomed.

Quality service

Quality service

Long warranty period to ensure that customers peace of mind, we promise customers to enjoy the Gold Mark team after the order to enjoy the long after-sales service.

Machine quality Inspection

More than 48 hours of machine testing before each equipment is shipped, and the long warranty period ensures customers' peace of mind

Customized solution

Accurately analyze customer needs and match the most suitable laser solutions for customers.

Online exhibition hall visit

Support online visit, dedicated laser consultant to take you to visit the laser exhibition hall and production workshop, according to the needs of the test machine processing effect.

Free cutting sample

Support proofing test machine processing effect, free testing according to customer material and processing needs.

GM-3015EPM

Protect Enclosed Fiber Laser Cutting Machine

Bulk purchases to obtain greater support from suppliers,
lower purchase costs for the same product, and better after-sales policies

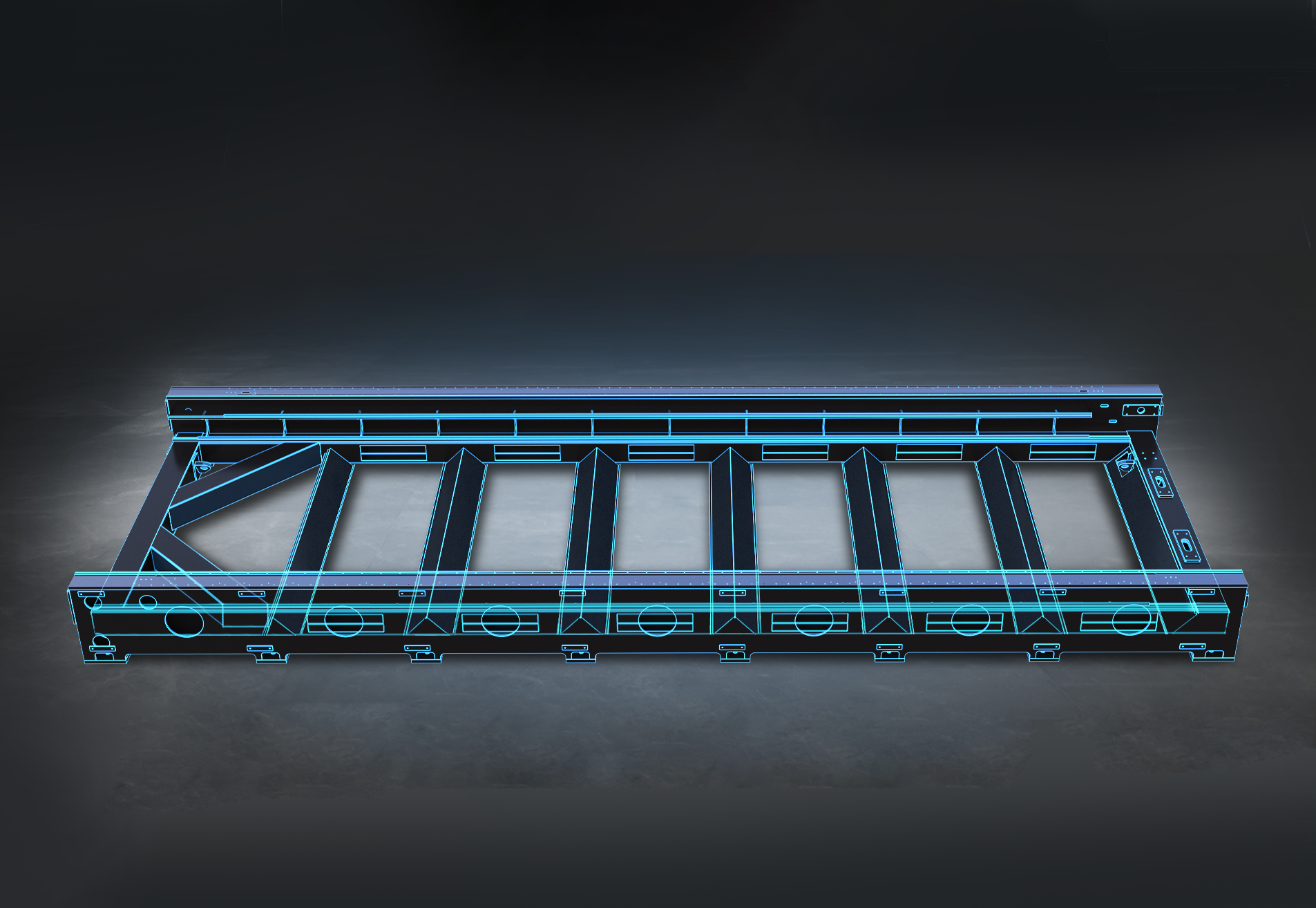

Equipped with a fully enclosed safety cover, it effectively reduces smoke pollution and protects the safety of users to the greatest extent; the intelligent exchange platform and extremely fast exchange save loading and unloading time and improve production efficiency. The new bed structure ensures the stability of the bed and does not deform. The new fire-resistant and anti-burning insulation design increases the service life of the equipment, reduces loss, and ensures cutting accuracy. The ultra-large diameter air duct design improves the smoke exhaust and heat removal effect.

Mechanical Configuration

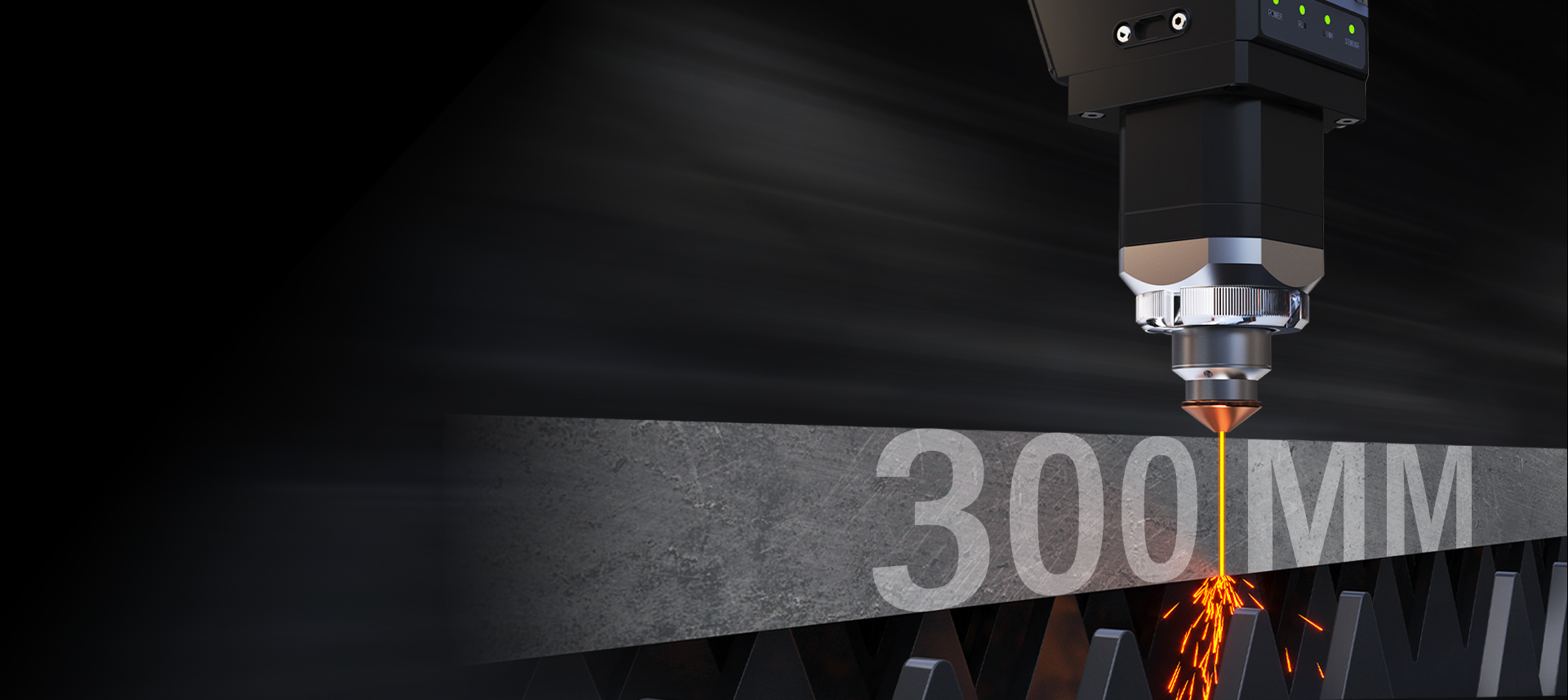

Auto Focus Laser Cutting Head

Suitable for a variety of focal lengths, the focus position can be adjustedaccording to different thicknesses. Flexible and fast, no collision,automatic edge finding, reducing sheet waste.

Aviation Aluminum Alloy Beam

The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

SQUARE RAIL

Brand :Taiwan HIWIN Advantage:Low noise,wear-resistant,smooth to keep fast Moving speed of laser head Details:30mm width and 165 four pieces stock on every table to decrease the pressure of rail

Control system

Brand :CYPCUT Details:edge seeking function and flying cutting function ,intelligent typesetting ect,supported Format:AI,BMP,DST,DWG,DXF,DXP,LAS,PLT,NC,GBX etc...

Automatic lubrication system

Equipped with automatic lubrication system to reduce machine failures, reduce maintenance costs, improve lubrication utilization, optimize lubrication steps, and improve operational safety.

Rack drive

Adopt helical rack transmission, with large contact surface, more precise movement, higher transmission efficiency and smoother operation.

Remote wireless control handle

Wireless handheld operation is more convenient and sensitive, improves production efficiency, and is perfectly compatible with the system.

Chiller

Equipped with a professional industrial fiber optic chiller, it cools the laser and laser head at the same time. The temperature controller supports two temperature control modes, which effectively avoids the generation of condensed water and has a better cooling effect.

Technical Parameters

Machine Model GM3015EPM GM4015EPM GM4020EPM GM6015EPM GM6025EPM
Working Area 3050*1530mm 4050*1530mm 4050*2030mm 6050*1530mm 6050*2530mm
Laser Power 1000W-30000W
Accuracy Of
Positioning
±0.03mm
Repeat
Repositioning
Accuracy
±0.02mm
Max Movement Speed 120m/min
Servo Motor
and Driver System
1.2G
说明书+质检EPM(大包围)(3)

Sample display

Applicable materials: Mainly used for fiber laser metal cutting, suitable for cutting plates of stainless steel, low carbon steel, carbon steel, alloy steel, spring steel, iron, galvanized iron, aluminum, copper, brass, bronze, titanium, etc.

Quality inspection and delivery

Industrial machinery and equipment play an important role in modern industrial production. Their performance and quality are directly related to production efficiency and product quality. For this reason, GOLD MARK conducts professional quality inspection of machinery and equipment before long distance transport or delivery to the user, the correct packaging and transportation to ensure the safety and integrity of machinery and equipment.

About Freight Transportation

When packaging machinery and equipment, different components should be separated according to their relevance to avoid damage caused by collision and friction.  In addition, appropriate fillers, such as foam plastics, air bags, etc., are needed to increase the buffering effect of packaging materials and improve the safety of mechanical equipment.
